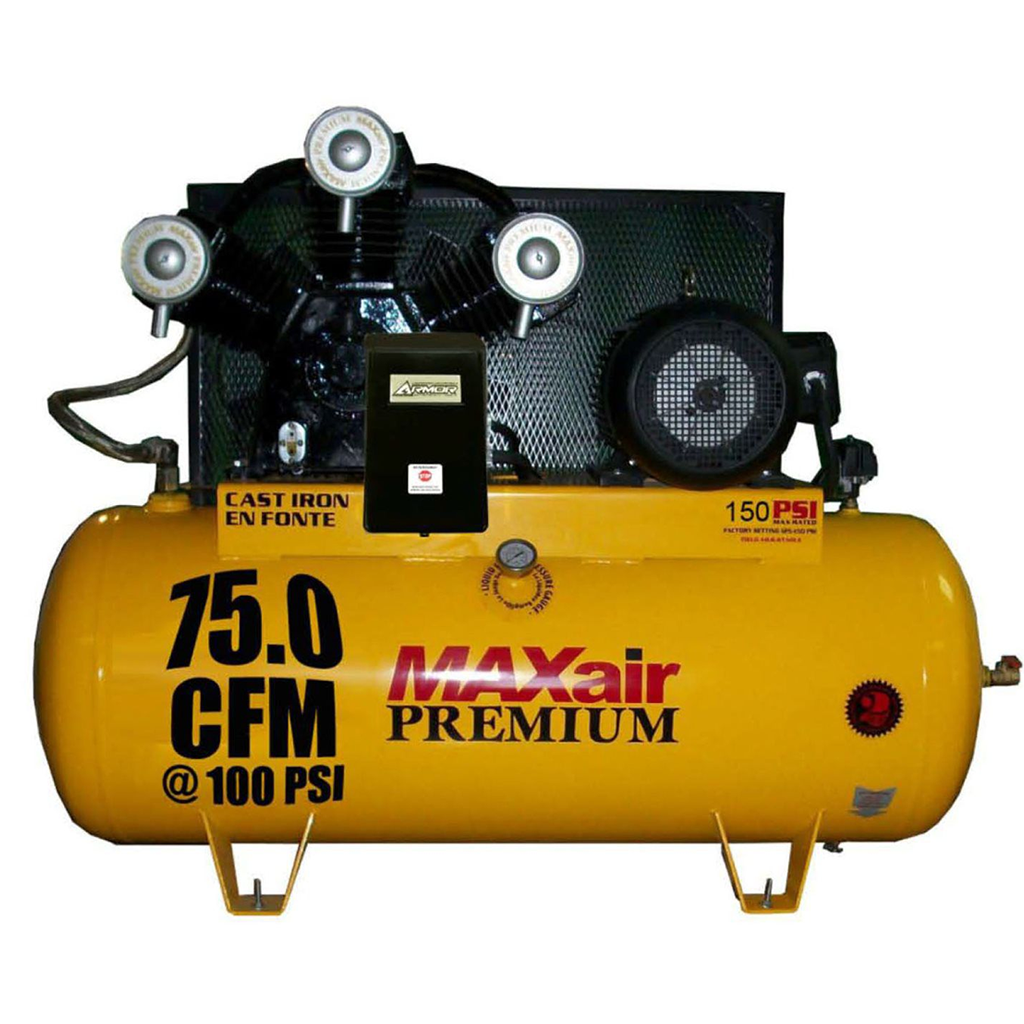

MaxAir 20 HP 120 Gallon Air Compressor

MaxAir 20 HP 120 Gallon Air Compressor

C203120H1-MS208-MAP

Regular price $1,195.95 $5,500.00 Sale

Features:

  • Rugged “V” style 3 cylinder compressor pump with cast iron cylinders
  • 120 Gallon Horizontal ASME registered tank
  • Premium air filters with “auto drop” replacement feature
  • Easy view oil sight gauge
  • High efficiency reed valves for maximum performance
  • Sturdy metal belt guard
  • Heavy duty 1” ball valve included
  • Heat treated crank shaft with “dual” ball valve included
  • Commercial 20 HP electric motor
  • Heavy duty magnetic starter included
  • Rust proof stainless steel braided discharge tubing for extended life
  • Individual and removable cylinders for smoother, cooler operation and easy maintenance
  • 75 CFM @ 100 PSI
  • 208V Motor
  • 73 x 27 x 56.5
  • 1155 LBS
  • 2 Year Commercial Use Warranty
  • TMI400000

Item Description Product Code  Price
1 Compressor w/ Flywheel PT15 $2,828.00
2 Discharge Tube (2.5ft) Assembly TU-1-23/45/00
3 Pressure Gauge PGLF200-2.5BM1/4 $13.00
4 Outlet Valve BV1/4MXF
5 Air Receiver (Tank) 120HE24X68-Y
6 Drain Cock - Assembly OSB WO DC ASSEMBLY
7 V-Belt B76
8 Belt Guard BG120GAL $108.00
9 Motor - 1 Phase, 208/230V EM20.0-18-30
10 Check Valve P1010S-T $88.00
11 Mag Starter 7.5 HP 208/240 V 1064MS $474.00
12 Pulley - Motor 4B6.4PD
13 Hub or Bushing SD 15/8
14 Unloader Tube TU-1/4-CU $17.00
**Fittings Required for TU-1/4-CU 68-4A $3.00
15 Safety Valve PSV1/4-200 $12.00
Eagle Compressor Oil EAOIL10 $7.90

Item # Part # Quantity Req. Description
1 51135-0100 3 Cylinder Head Assembly
2 51135-0101 3 Cylinder Head
3 81508-031042 24 Stud
4 82502-030010 24 Nut
5 51135-0102 2 Cylinder Head Packing
6 81501-031030 24 In & Out Push Cover Lock Bolt
7 51135-0111 6 In & Outlet Valve Seat Gasket
8 51135-0115 3 Inlet Valve Push Cover
9 51135-0122 3 Unloading Piston
10 83602-710065 3 O-Ring G#65 (Inlet Using)
11 83602-770065 3 O-Ring G#65 (Outlet Using)
12 51135-0145 3 Outlet Valve Push Cover
13 51135-2100 3 Inlet Valve Assembly
14 51135-3100 3 Outlet Valve Assembly
15 51135-2103 9 In & Outlet Valve Plate
16 51135-2107 6 Inlet Valve Spring
17 51135-3107 6 Outlet Valve Spring
18 51135-4101 3 Cylinder
19 51135-4103 3 Cylinder & Case Packing
20 51135-5101 3 Piston
21 51135-5112 3 Piston Pin w/ Snap Ring
22 51135-5107 6 Piston Snap Ring
23 51135-5120 3 Connecting Rod Assembly W/ Dipper
24 51135-5108 3 Connecting Rod Piston Bush
25 51135-5109 6 Connecting Rod Crankpin Metal
26 51135-4601 1 Crankshaft
27 51135-5103 6 Compression Ring
28 51135-5105 6 Oil Control Ring
29 51135-4603 2 Crankshaft Counter Weight
30 81501-031690 2 Counter Weight Mounting Bolt
31 51135-4683 2 Counter Weight Lock Washer
32 51135-5128 2 Oil Splash Dipper (Angle)
33 51135-5127 1 Oil Splash Dipper (Straight)
34 80112-000404 1 Crankcase Oil Plug
35 51135-4701 1 Crankcase
36 81508-031243 12 Stud
37 82502-030012 12 Nut
38 51135-4703 1 Front Bearing Cover
39 81501-031030 10 Front & Rear Cover Lock Bolt
40 51135-4704 1 Front Bearing Cover Packing
41 51134-4706 1 Rear Bearing Cover
42 51134-4707 1 Rear Bearing Cover Packing
43 51134-4708 1 Front Oil Seal
44 83502-30310 1 Front Bearing
45 83502-32210 1 Rear Bearing
46 51175-7710 1 Comp. Body Discharge Piping Assembly #A
47 51124-7701 1 Outlet Pipe Joint #A
48 51134-7702 1 Outlet Pipe Joint #B
49 51134-7703 1 Outlet Pipe Joint #C
50 69922-030808 1 Outlet Pipe Joint Nut
51 51124-4760 1 Breather Cap
52 51124-4770 1 Oil Level Gauge Assembly w/ Gasket
53 51124-4774 1 Oil Level Gauge Protect Shell
54 51124-5600 3 Air Strainer Assembly
55 51124-5614 3 Air Strainer Filter
56 51124-4719 1 Crankcase Oil Cap
57 51135-6601 1 Compressor Pulley
58 51135-6601-1 1 Pulley Fan
59 81501-030825 6 Pulley Fan Lock Bolt
60 83703-001045 1 V-Pulley Key
61 51124-6621 1 Comp. Pulley Thrust Washer
62 81501-031245 1 Comp. Pulley Thrust Bolt
