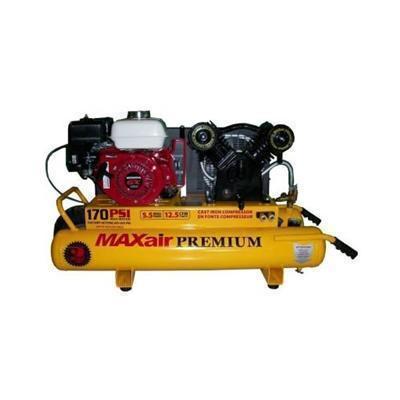

Maxair 5.5 Horse Power 10 Gallon Compressor

Maxair 5.5 Horse Power 10 Gallon Compressor

TT55GE+MAP

$1,870.00 USD
$2,100.00 USD $1,870.00 USD
Sale Sold out


    LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED ALTHOUGH THIS ITEM QUALIFIES FOR FREE SHIPPING

    THIS ITEM SHIPS TRUCKLINE

    Features

    • CFM / PSI: 12.5 CFM @ 100 PSI
    • Horse Power: 5.5 Honda GX200 Electric Start
    • Max Rated PSI: 170
    • Air Tank Capacity (Gal): 10 Twin Tank
    • ASME Registered
    • Single Stage
    • Cast Iron Cylinders
    • Heavy Duty Pressure Switch
    • Auto Drop Premium Air Filters
    • Oil Drain on Front of Unit
    • High Efficiency Reed Valves
    • Sturdy Metal Belt Guards
    • Outlet Valve Included
    • Liquid Filled Pressure Gauge
    • Pressure Switch: 95-125
    • 2 Year Limited Warranty
    • TMI158000

    DIM:  50" x 18" x 24"

    WEIGHT:  190 LBS

    • SHIPPING DIMENSIONS- 250# 40X48X29

    Item Description Product Code
    1 Compressor w/ Flywheel PV02AHP
    2 Pressure Gauge PGLF200-2.5BM1/4
    3 Discharge Tube (2.5ft) ASSY TU-23-AL
    4 Air Receiver (tank) 10TT41X5-Y
    5 Drain Cock -Assembly BV1/4MXF
    6 V-Belt 4L530
    7 Belt Guard TT-GUARD
    8 Engine GX-160UT1QXE2-R
    9 Unloader NRP-A-125-150
    10 Pulley - Engine MA38X3/4
    11 Safety Valve PSV1/4-200
    12 Engine Control w/ Cable TCP-48
    13 Handle Grip TT-GRIP
    14 Vibration Dampner TT-FOOT
    15 Pneumatic Wheel TT-WHEEL-SQ-FF
    16 Coupler CPL-DUO
    17 Hose Assembly - Regulator TT-HOSE-B
    18 Pressure Gauge (regulator) PT0160
      Eagle Compressor Oil EAOIL10
    Axle WA1001
    Regulator R202-1/4

     Item Description Part Number
    		 Quantity
    1 Intake Filter Assembly 51111-5600 2
    2 Cylinder Head 52122-0101 2
    3 Lift Limiter for Discharge Valve Plate 51121-3102 2
    4 Valve Plate 52122-2101 2
    5 Valve Plate to Head Gasket 52122-2105 2
    6 Discharge Valve Reed 51121-2103 4
    7 Intake Valve Reed
    		 52122-2103 8
    8 Valve Plate to Cylinder Gasket 52122-2104 2
    9 Piston 51122-5101 2
    10 Piston Pin 51122-5112 2
    11 Piston Pin Snap Ring 51121-5107 4
    12 Connecting Rod c/w Dipper 51122-5120 2
    13 Metal Triangle for Valve Plate Assy. (Not Shown) 51121-3101 2
    14 Cylinder 52122-4101 2
    15 Oil Filler Cap 51111-4719 1
    16 Cylinder to Crankcase Gasket 51122-4103 2
    17 Oil Sight Glass c/w Gasket 51111-4770 1
    18 Crankcase 51122-4701 1
    19 Crankshaft 51122-4601 1
    20 Front Bearing 83501-6205 1
    21 Rear Bearing 83501-6205 1
    22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
    23 Rear Bearing Housing 51122-4703 1
    24

    Oil Seal

    		 51122-4708 1
    25 Crankcase Breather 51111-4761 1
    26 Flywheel 51122-6601 1
    27 Front Bearing Housing
    		 51122-4706 1
    28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
    29 Connecting (Interstage) Tubing 51122-7710 1
    Interstage "Y" Fitting 51121-7702 1
    Interstage "Elbow" Fitting 51112-7701 1
    Eagle Oil (350ml or 12oz) EAOIL10 1
    1/4" Street Elbow (Oil Drain) STREL1/4
    		 1



     Item Description Part Number Quantity
    A Intake Filter Element Kit Includes: 51121-5614C 1
    - 2x Intake Filter Elements Per Pump
    B Valve Repair Kit Includes: 101000-165 2
    Valve Plate to Head Gasket (Item 5)
    2x Discharge Valve Reeds (Item 6)
    Intake Valve Reed  (Item 7)
    6x Valve Plate Screws
    Metal Triangle for Valve Plate Assy. (Item 13)
    C Ring Repair Kit Includes: 101000-265 2
    Valve Plate to Head Gasket (Item 5)
    Valve Plate to Cylinder Gasket (Item 8)
    2x Compression Rings
    1x Oil Control Ring
    Cylinder to Crankcase Gasket (Item 16)
    D Valve Plate Assembly (Not Shown) 51121-2100 2
    E Flywheel Fastener Kit
    		 51122-6602 1
    Unloader 52122-0120 2
    Unloading Elbow 69926-050101 1
    Unloading Tee 69927-050101 1
    Unloading Tube TU-1/4-CU 3ft
    Cylinder Head 51121-0101U 2

    		Items Not Shown:
    Woodruf Key for Engine 3/16x3/16x11/2 1
    Woodruf Key for Pump (PV02A) 51122-4606 1
    Grommet for Bullwhip 3203 GROMMET 1
