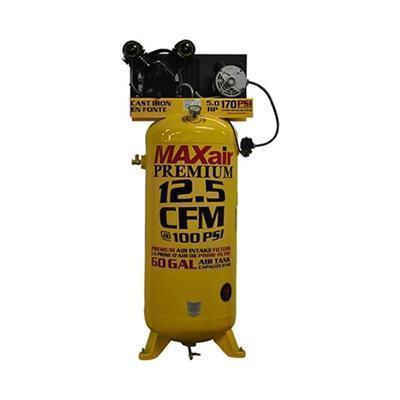

MaxAir 5 Horsepower 60 Gallon Air Compressor

C4160V1-MAP

Regular price $1,950.00 $1,100.00 Sale

Free Shipping Does Not Include Lift Gate Fees

Features

  • CFM / PSI: 12.5 CFM @ 100 PSI
  • Horse Power: 5.0
  • Max Rated PSI: 170
  • Air Tank Capacity (Gal): 60
  • Electric Motor: 208/230V
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 15
  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 208/230 Volt Single Phase Electric Motor
  • 60 Gallon ASME Registered Tank 170 PSI Rating
  • Premium Air Filters With Auto Drop Feature
  • Liquid Filled Pressure Gauge
  • Convenient Extended Oil Drain
  • Convenient Located Ball Valve Drain To Remove Moisture From Tank
  • Easy View Oil Sight Gauge
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Flywheel For Cooler Running & Longer Life
  • Sturdy Metal Belt Guard
  • Heavy Duty 1/2" Ball Valve Included
  • CSA Approved
  • 2 Year Limited Warranty
  • TMI89500

DIM:  27" x 20" x 65"

WEIGHT:  260 LBS

Item Description  Product Code
1 Compressor w/ Flywheel PV02AHP-TS PUMP ASSY
2 Discharge Tube (2.5ft) ASSY TU-23-AL
3 Pressure Gauge PGLF200-2.5BM1/4
4 Air Receiver (tank) 60V20X48-BR-Y
5 Drain Cock -Assembly OSB WO DC ASSEMBLY
6 V-Belt 4L530
7 Belt Guard BGC
8 Motor - 1 Phase, 208/230V EM05.0-36-10SPLWEG
9 Wiring Harness  12/3-24-C4
10 Check Valve CTF1/2X1/2
11 Pressure Switch 21UCBDB-170
12 Pulley - Motor MA38X5/8
13 Unloader Tube  TU1/4BLK
  **Fittings Required for TU-1/4CU 68-4A
14 Safety Valve PSV1/4-170
15 Ball Valve BV1/2MF
Eagle Compressor Oil EAOIL10
