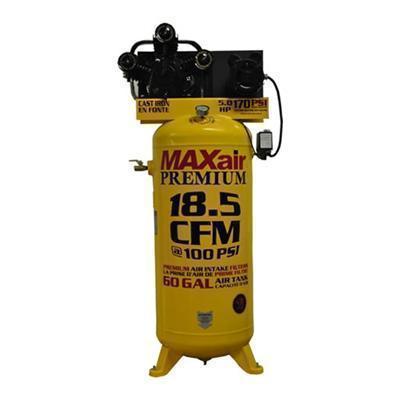

MAXair 5 Horse Power 60 Gallon Single Stage Air Compressor 208 230V 1-Phase

C5160V1-MAP

Regular price $1,850.00 $1,325.00 Sale

Free Shipping Does Not Include Any Lift Gate Fees

Features

  • CFM / PSI: 18.5 CFM @ 100 PSI
  • HorsePower: 5.0
  • Max Rated PSI: 170
  • Air Tank Capacity (Gal): 60
  • 60 Gallon ASME Tank Rated To 150 PSI
  • 208/230V Single Phase Motor
  • Thermally protected; mag starter not required
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 23/21
  • Rugged Compressor With Cast Iron Cylinder
  • Built to work hard and last a long time
  • "V" Design Minimizes Vibration, Improves Cooling, Extends Compressor Life
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 208/230 Volt Single Phase Electric Motor
  • 60 Gallon ASME Registered Tank 170 PSI Rating
  • Premium Air Filters With Auto Drop Feature Extends Compressor Life and Easy To Maintain
  • Liquid Filled Pressure Gauge
  • Convenient Extended Oil Drain
  • Convenient Located Ball Valve Drain To Remove Moisture From Tank
  • Easy View Oil Sight Gauge
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Flywheel For Cooler Running & Longer Life
  • Sturdy Metal Belt Guard
  • Heavy Duty 1/2" Ball Valve Included
  • CSA Approved
  • 2 Year Limited Warranty
  • TMI110500

 This Item Will Be Delivered by Truck Line.  Residential & Lift Gate Charges May Apply.

DIM:  30" x 20" x 66"

WEIGHT:  280 LBS

Item Description  Product Code
1 Compressor w/ Flywheel PT03AHP
2 Discharge Tube (2.5ft) ASSY TU-23-AL
3 Pressure Gauge PGLF200-2.5BM1/4
4 Outlet Valve BV1/4MXF
5 Air Receiver (tank) 60V20X48BR-Y
6 Drain Cock -Assembly OSB WO
7 V-Belt 4L530
8 Belt Guard BGC
9 Motor - 1 Phase, 208/230V EM05.0-36-10
10 Wiring Harness 12/3-24-C4
11 Check Valve CTF1/2X1/2
12 Pressure Switch 3BEHD-170
13 Pulley - Motor MA38X7/8
14 Unloader Tube  TU-1/4-BLK
  **Fittings Required for TU-1/4CU 68-4A
15 Safety Valve PSV1/4-170
Eagle Compressor Oil EAOIL10

 Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
1
21 Rear Bearing 83501-6205
1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
