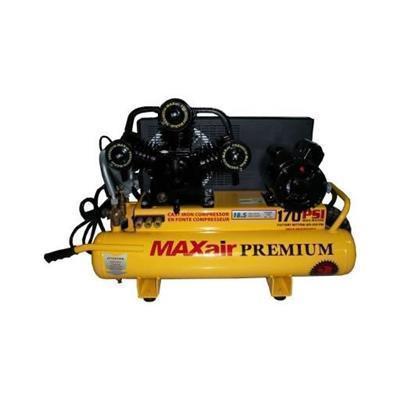

MaxAir 5 HP 8 Gallon Air Compressor

MaxAir 5 HP 8 Gallon Air Compressor

TT518E-MAP

$1,450.00 USD
$1,995.00 USD $1,450.00 USD
Sale Sold out


Free Shipping Does Not Include Any Lift Gate Fees or Residential Fees

this item ships truckline

Features

  • CFM / PSI: 18.5 CFM @ 100 PSI
  • HorsePower: 5.0
  • Max Rated PSI: 170
  • Air Tank Capacity (Gal): 8
  • Single Stage
  • Electric Motor: 208/220V
  • 3 Piston Cast Iron Pump
  • Steel Tank
  • Motor RPM: 3600
  • Bare Comp RPM: 1230
  • Amp Draw: 23/21
  • Pressure Switch: 95-125
  • Liquid Filled Pressure Gauge
  • Auto Drop Premium Air Filter
  • Oil Sight Gauge
  • 2 Year Limited Warranty
  • tmi130500

DIM:  48" x 18" x 18"

WEIGHT:  190 LBS

Item Description
1 Compressor w/ Flywheel PT03AHP
2 Discharge Tube  TU-23-AL
3 Pressure Gauge PGLF200-2.5BM1/4
  Pressure Gauge (regulator) PT0160
4 Wiring Harness 12/3-42-TT15
5 Air Receiver (tank) 10TT41X5-Y
6 Drain Cock  BV1/4MXF
7 V-Belt 4L530
8 Belt Guard BGC
9 Electric Motor EM05.0-36-10
10 Regulator R202-1/4
11 Unloader NDC29-M
12 Pressure Switch 21UCBDB-170
13 Pulley - Motor MA38X7/8
14 Unloader Tube TU1/4BLK
  *Fittings 68-4A
15 Safety Valve PSV1/4-200
16 Handle Grip TT-GRIP
17 Vibration Dampner TT-FOOT
18 Pneumatic Wheel TT-WHEEL-SQ-FF
19 Axle WA1001
20 Coupler CPL-TRI
21 Power Cord 12/3-72-TTP5
  Eagle Compressor Oil EAOIL10

 Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
 1
21 Rear Bearing 83501-6205
 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
 3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
