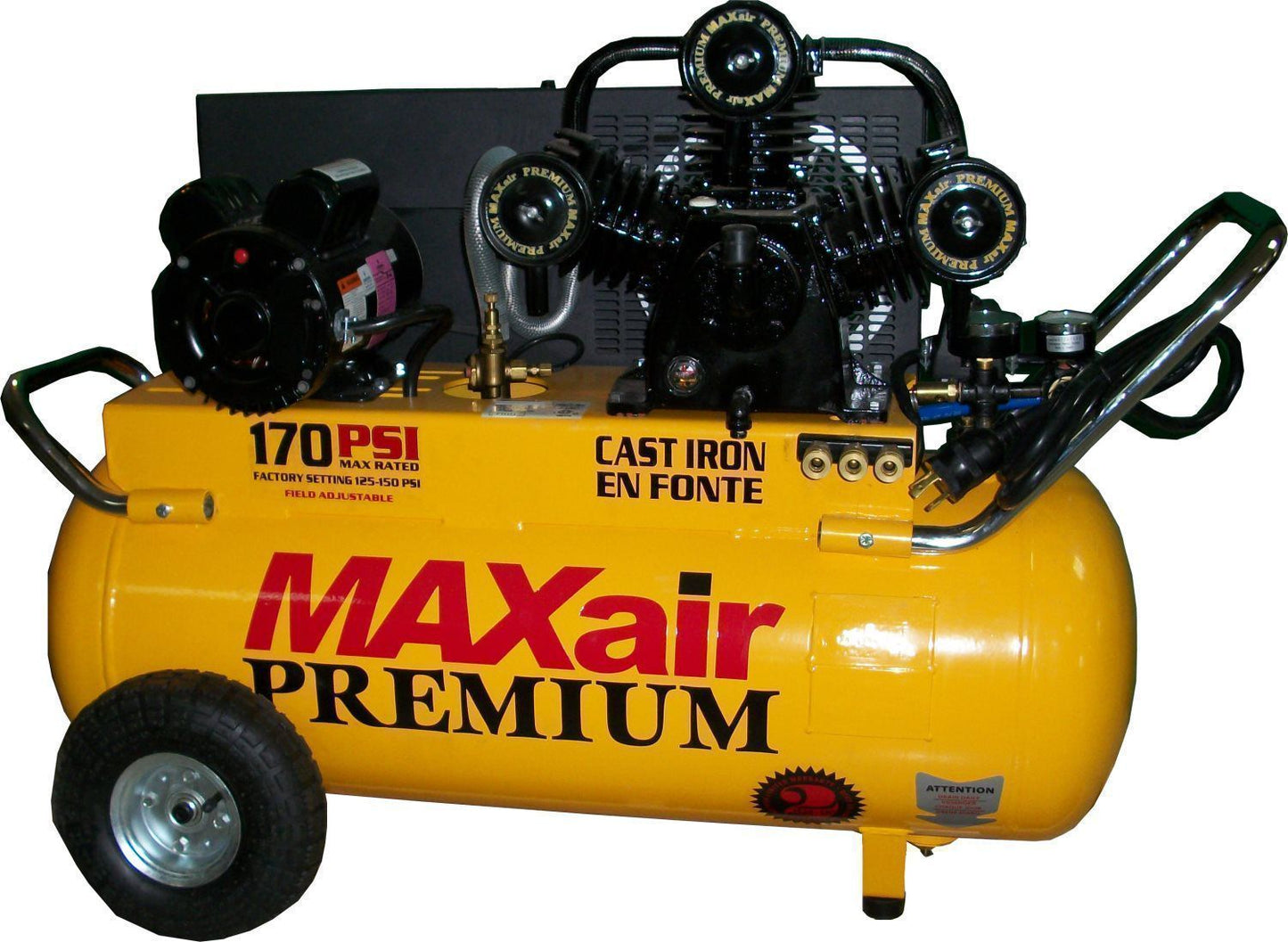

MaxAir Portable Air Compressor 5 HP 25 Gallon
MaxAir Portable Air Compressor 5 HP 25 Gallon
P5125H1-MAP
Regular price
$1,855.00 USD
Regular price
$2,400.00 USD
Sale price
$1,855.00 USD
Unit price
per
Couldn't load pickup availability
- 18.5 CFM @ 100 PSI
- 170 Maximum Rated PSI
- 25 Gallon Receiver Capacity
- Motor: 208/230V
- Dimensions: 44x18x33
- Weight: 320 lbs
- 2 Year Factory Warranty
- Shipping Dimensions- 312# 40x50x53
- TMI156000
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | PT03AHP PUMP ASSY |
| 2 | Discharge Tube | TU-20-AL |
| 3 | Unloader | NDC29-M |
| 4 | Electric Motor | EM05.0-36-10 |
| 5 | Pulley - Motor | MA38X7/8 |
| 6 | V-Belt | A54 |
| 7 | Belt Guard | TT-GUARD |
| 8 | Air Receiver (tank) | 25HEPORT-Y |
| 9 | Pressure Gauge | PGLF200-2.5BM1/4 |
| Pressure Guage (Regualtor) | PT0160 | |
| 10 | Regulator | R202-1/4 |
| 11 | Drain Cock | 240-B |
| 12 | Safety Valve | PSV1/4-200 |
| 13 | Pressure Switch | 3BEHD-170 |
| 14 | Wiring Harness | 12/3-42-TT15 |
| 15 | Handle (Long) | PT-HANDLE-25L |
| Handle (short) | PT-HANDLE-24HS | |
| 16 | Wheel | PT-WHEEL-FF |
| 17 | Vibration Dampner | TT-FOOT |
| 18 | Power Cord | 12/3-72-TTP5 |
| 19 | Unloader Tube | TU1/4BLK |
| *Fittings for TU1/4BLK | 68-4A | |
| Coupler | CPL-TRI | |
| Hose Assembly | TT-HOSE-B | |
| Eagle Compressor Oil | EAOIL10 |
| Item | Description | Part Number | Quantity |
| 1 | Intake Filter Assembly | 51111-5600 | 3 |
| 2 | Cylinder Head | 52122-0101 | 3 |
| 3 | Lift Limiter - Discharge Valve Reed | 51121-3102 | 6 |
| 4 | Valve Plate | 52122-2101 | 3 |
| 5 | Valve Plate to Head Gasket | 52122-2105 | 3 |
| 6 | Discharge Valve Reed | 51121-2103 | 6 |
| 7 | Intake Valve Reed | 52122-2103 | 3 |
| 8 | Valve Plate to Cylinder Gasket | 52122-2104 | 3 |
| 9 | Piston | 51122-5101 | 3 |
| 10 | Piston Pin | 51122-5112 | 3 |
| 11 | Piston Pin Snap Ring | 51122-5107 | |
| 12 | Connecting Rod c/w Dipper | 51122-5120 | 3 |
| 13 | Connecting Rod without Dipper | 52122-5120 | |
| 14 | Cylinder | 52122-4101 | 3 |
| 15 | Oil Filter Cap | 51111-4719 | 1 |
| 16 | Cylinder to Crankcase Gasket | 51122-4103 | 3 |
| 17 | Oil Sight Glass c/w Gasket | 51111-4770 | 1 |
| 18 | Crankcase | 51132-4701 | 1 |
| 19 | Crankshaft | 51132-4601 | 1 |
| 20 | Front Bearing |
83501-6205 |
1 |
| 21 | Rear Bearing |
83501-6205 |
1 |
| 22 | Crankcase to Rear Bearing Housing Gasket | 51122-4704 | 1 |
| 23 | Rear Bearing Housing | 51122-4703 | 1 |
| 24 | Oil Seal | 51122-4708 | 1 |
| 25 | Crankcase Breather | 51111-4761 | 1 |
| 26 | Flywheel | 51132-6601 | 1 |
| 27 | Front Bearing Housing | 51122-4706 | 1 |
| 28 | Crankcase to Front Bearing Housing Gasket | 51122-4707 | 1 |
| 29 | Connecting (Interstage) Tubing | 51132-7710 | 2 |
| 30 | Metal Triangle For Valve Plate Assembly (Not Shown) | 51121-3101 | 2 |
| 1/4" Street Elbow (Oil Drain) | STREL1/4 | 1 | |
| Interstage "Y" Fitting | 51121-7702 | 2 | |
| Interstage "Elbow" Fitting | 51112-7701 | 1 | |
| Eagle Oil (650ML or 22OZ) | EAOIL10 | 1 |
| Item | Description | Part Number | Quantity |
| A | Intake Filter Element Kit Includes: | 51121-5614C | 1 |
| - 3 Intake Filter Elements | |||
| B | Valve Repair Kit Includes: |
101000-165 |
3 |
| Valve Seat to Head Gasket (Item 5) | |||
| 2x Outlet Valve Plates (Item 6) | |||
| Intake Valve Plate (Item 7) | |||
| 6x Valve Plate Screws | |||
| Valve Seat to Cylinder Gasket (Item 8) | |||
| Metal Triangle for Valve Plate Assy (Item 30) | |||
| C | Ring Repair Kit Includes: | 101000-265 | 2 |
| Valve Seat to Head Gasket (Item 5) | |||
| Valve Seat to Cylinder Gasket (Item 8) | |||
| 2x Compression Rings | |||
| 1x Oil Control Ring | |||
| Cylinder to Crankcase Gasket (Item 16) | |||
| D | Valve Plate Assembly (Not Shown) | 51121-2100 | 3 |
| E | Flywheel Fastener Kit | 51132-6602 | 1 |
| E | Head Unloader Kit Includes: | ||
| Unloader | 52122-0120 | 3 | |
| Unloading Elbow | 69926-050101 | 1 | |
| Unloading Tee | 69927-050101 | 1 | |
| Unloading Tube | TU-1/4-CU | 5ft | |
| Cylinder Head | 51121-0101U | 3 |
