CC3065 Pump

CC3065

Regular price $995.95 $380.00 Sale

 CC3065 Pump 16.5 CFM @ 100 PSI, 5.0 Horsepower, Max Rated @ 150 PSI



Fits The Following Air Compressors:

  • IH8G30TRKE-H-BS
  • IHD3160V1
  • IHD7160V1
  • IHD7180V1
  • IHP80G25H1-BS
  • IHP80GE25H1-BS
  • IHP90G25H1
  • IHTT80G-BS
  • IHTT80GE-BS
  • IHTT90G
  • BEC-6051V1
  • KC7160V1
  • NAC7160V1
  • TE-6071V1
  • TE-8071V1
  • XLG-6071V1G
  • XLG-8071V1G

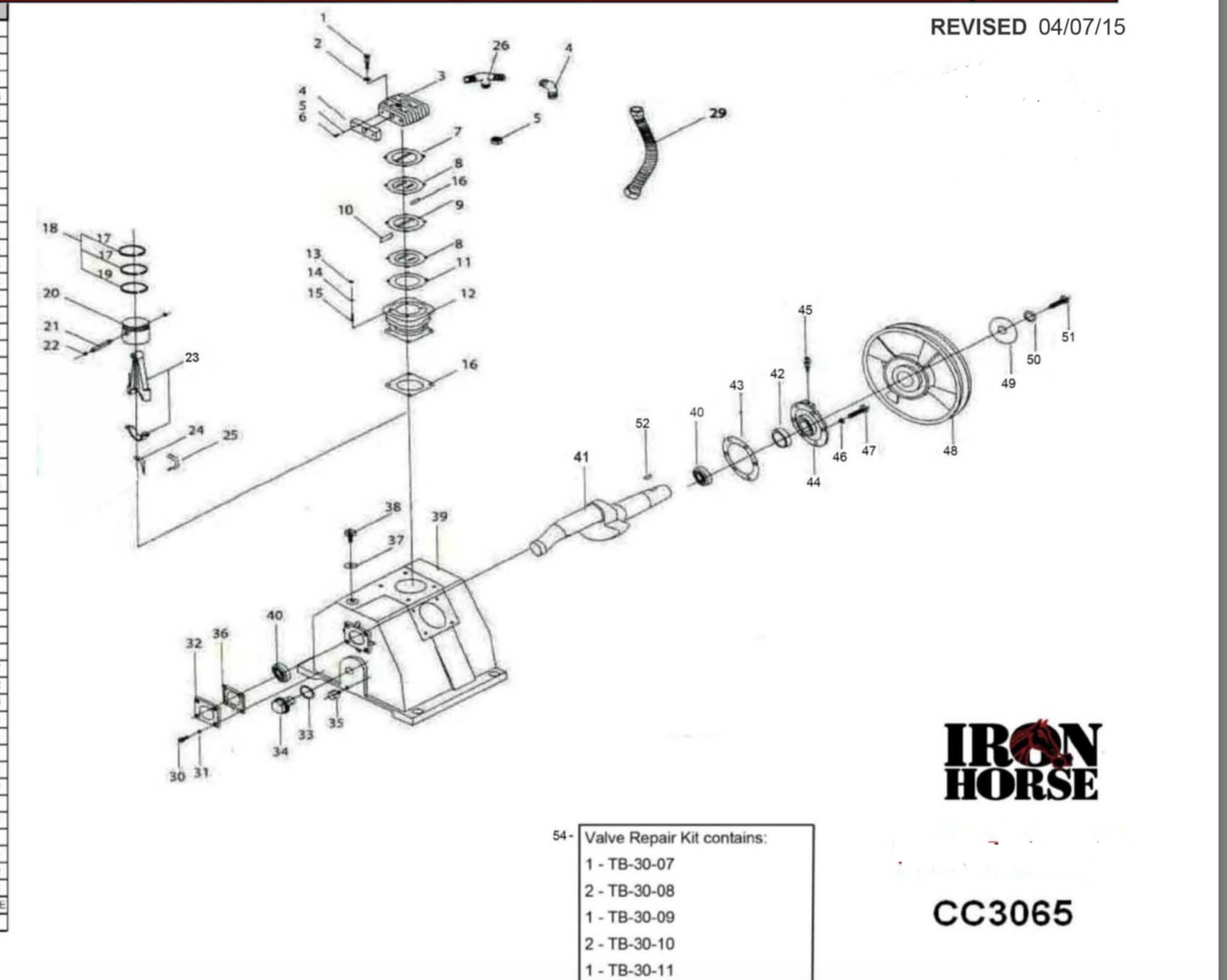

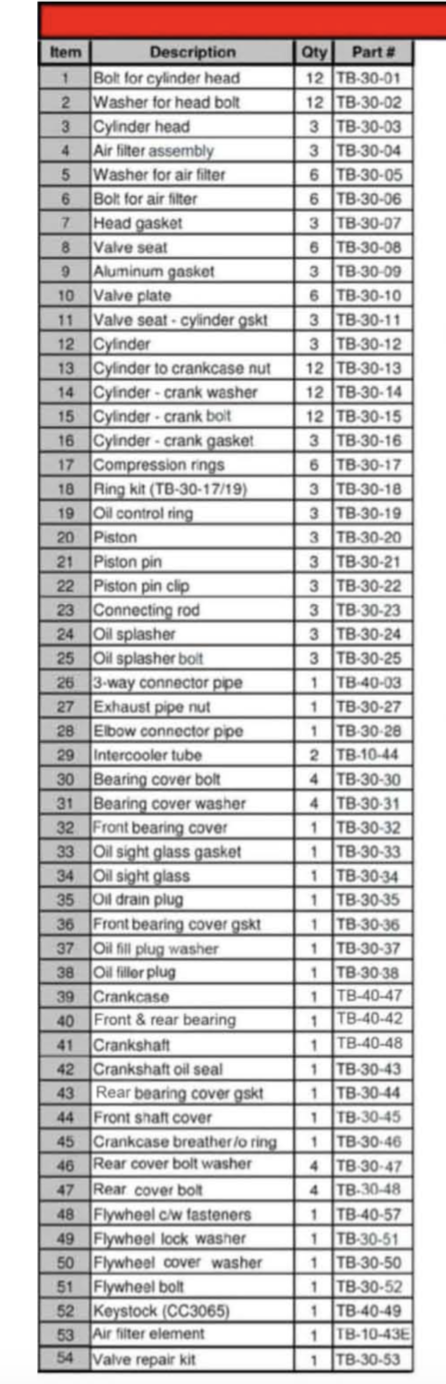

Item Description Quantity Part Number
1 Bolt for Cylinder Head 12
TB-30-01
2 Washer for Head Bolt 12 TB-30-02
3 Cylinder Head 3 TB-30-03
4 Air Filter 3 TB-30-04
5 Washer for Air Filter 6 TB-30-05
6 Bolt for Air Filter 6 TB-30-06
7 Head Gasket 3 TB-30-07
8 Valve Seat 6 TB-30-08
9 Aluminum Gasket 3 TB-30-09
10 Valve Plate Reed 6 TB-30-10
11 Valve Seat / Cylinder Gasket 3 TB-30-11
12 Cylinder 3 TB-30-12
13 Cylinder to Crankcase Nut 12 TB-30-13
14 Cylinder-Crank Washer 12 TB-30-14
15 Cylinder-Crank Bolt 12 TB-30-15
16 Cylinder-Crank Gasket 3 TB-30-16
17 Compression Rings 6 TB-30-17
18 Ring Kit 3 TB-30-18
19 Oil Control Ring 3 TB-30-19
20 Piston 3 TB-30-20
21 Piston Pin 3 TB-30-21
22 Piston Pin Clip 3 TB-30-22
23 Connecting Rod 3 TB-30-23
24 Oil Splasher 3 TB-30-24
25 Oil Splasher Bolt 3 TB-30-25
26 3-Way Connector Pipe 1 TB-40-03
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 2 TB-10-44
30 Bearing Cover Bolt 4 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 1 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-40-47
40 Front & Rear Bearing 1 TB-40-42
41 Crankshaft 1 TB-40-48
42 Crankshaft Oil Seal
1 TB-30-43
43 Rear Bearing Cover Gasket
1 TB-30-44
44 Front Shaft Cover
1 TB-30-45
45 Crankcase Breather/ O Ring
1 TB-30-46
46 Rear Cover Bolt Washer
4 TB-30-47
47 Rear Cover Bolt 4 TB-30-48
48 Flywheel C/W Fasteners
1 TB-40-57
49 Flywheel Lock Washer 1 TB-30-51
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Bolt 1 TB-30-52
52 Keystock
1 TB-40-49
53 Air Filter Element 1 TB-10-43E
A Valve Repair Kit 1 TB-30-53
