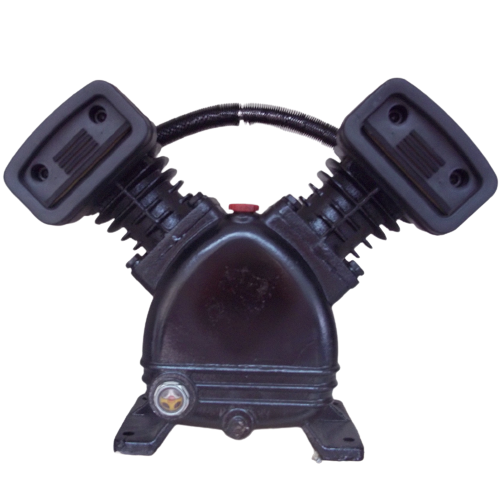

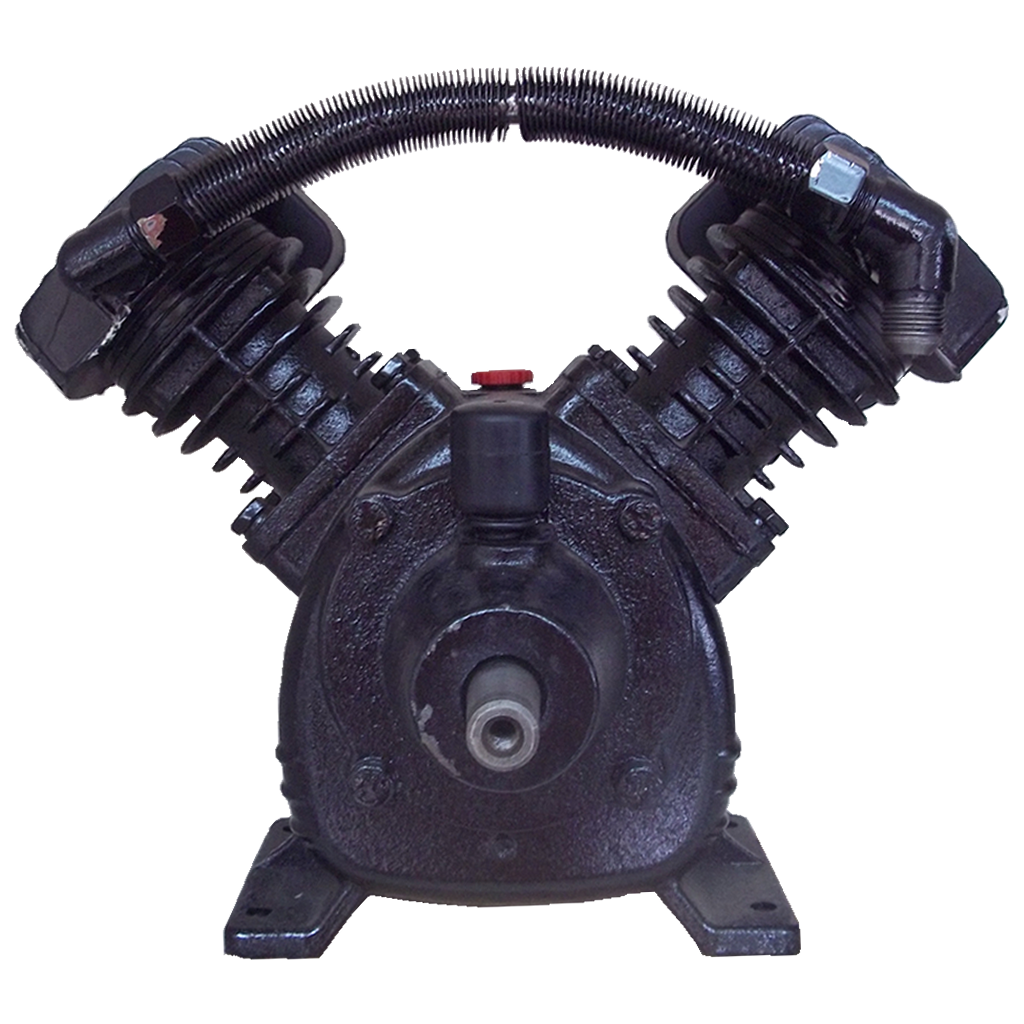

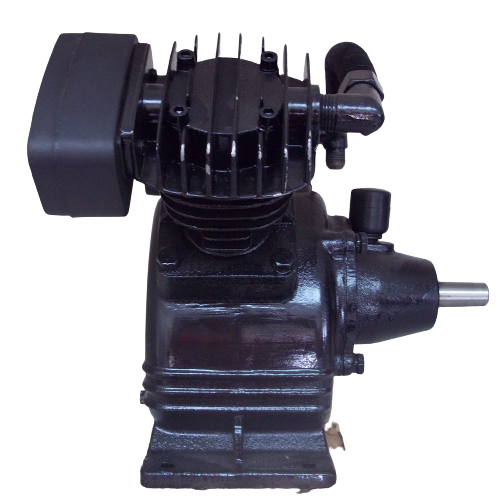

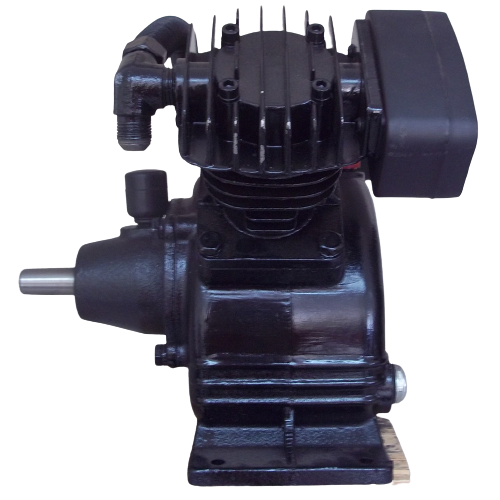

Pump CC2051
Pump CC2051
CC2051
Regular price
$220.00 USD
Regular price
$240.00 USD
Sale price
$220.00 USD
Unit price
per
Couldn't load pickup availability
Features:
This was used on the following air compressors pumps from Wood Industries including Iron Horse Air Compressors, Eagle Air Compressors, and MAXair Industrial Air Compressor.
Fits Air Compressors:
EZ-813-DV-BLK
HP3115H1
HP5120H1-US
HP5120V1-US
KC*P2051H1
KCP2431V1-CC
P3120H1-CC
P3120H1-CC-AT
P312OH1-CUS
P3124V1-CC
P3124V1-CC-AT
XLG-P2051H1-CC
XLP-P2031H1-CCB
XLP-P2431V1-CCB
| Item | Description | Product Code | Quantity |
|
1 |
Oil Sight Gauge | TB-10-01 |
1 |
| 2 | Oil Sight Gauge Gasket | TB-10-02 | 1 |
| 3 | Oil Drain Plug | TB-10-03 | 1 |
| 4 | Crankcase | TB-10-04 | 1 |
| 5 | Oil Fill Plug & "O" Ring | TB-10-05 | 1 |
| 6 | Crankshaft | TB-10-06 | 1 |
| 7 | Front Bearing Snap Ring | TB-10-07 | 1 |
| 8 | Front Bearing | TB-10-08 | 1 |
| 9 | Rear Bearing Snap Ring | TB-10-09 | 1 |
| 10 | Rear Bearing | TB-10-10 | 1 |
| 11 | Oil Seal | TB-10-11 | 1 |
| 12 | Crank - Rear Bearing Housing | TB-10-12 | 1 |
| 13 | Rear Bearing Housing | TB-10-13 | 1 |
| 14 | Rear Bearing Housing Washer | TB-10-14 | 4 |
| 15 | Rear Bearing Housing Bolt | TB-10-15 | 4 |
| 16 | Crank Breather & "O" Ring | TB-10-16 | 1 |
| 17 | Flywheel | TB-10-17 | 1 |
| 18 | Flywheel Lockwasher | TB-10-18 | 1 |
| 19 | Flywheel Bolt | TB-10-19 | 1 |
| 20 | Flywheel Washer | TB-10-20 | 1 |
| 21 | Cylinder - Crankcase Gasket | TB-10-21 | 2 |
| 22 | Cylinder | TB-10-22 | 2 |
| 23 | Cylinder Mounting Screw | TB-10-23 | 8 |
| 24 | Cylinder Mounting Nut | TB-10-24 | 8 |
| 25 | Valve Seat - Cylinder Gasket | TB-10-25 | 2 |
| 26 | Connecting Rod | TB-10-26 | 2 |
| 27 | Piston | TB-10-27 | 2 |
| 28 | Piston Pin | TB-10-28 | 2 |
| 29 | Piston Pin Clip | TB-10-29 | 4 |
| 30 | Oil Control Ring | TB-10-30 | 2 |
| 31 | Compression Ring | TB-10-31 | 4 |
| 32 | Lower Valve Seat | TB-10-32 | 2 |
| 33 | Middle Alum. Valve Seat Gasket | TB-10-33 | 2 |
| 34 | Valve Plate Reed | TB-10-34 | 4 |
| 35 | Upper Valve Seat | TB-10-32 | 2 |
| 36 | Cylinder Head Gasket | TB-10-36 | 2 |
| 37 | Cylinder Head | TB-10-37 | 2 |
| 38 | 3-Way Interstage Connector | TB-10-38 | 1 |
| 39 | Cylinder Head Bolt Washer | TB-10-39 | 8 |
| 40 | Cylinder Head Bolt | TB-10-40 | 8 |
| 41 | Interstage Tube with Fins | TB-10-41 | 1 |
| 42 | Interstage Tube Connector Nut | TB-10-42 | 2 |
| 43 | Air Filter Assembly | TB-30-04 | 2 |
| 44 | Interstage Tube Assembly | TB-10-44 | 1 |
| 45 | Air Filter Assembly Washer | TB-10-45 | 4 |
| 46 | Air Filter Assembly Bolt | TB-10-46 | 4 |
| 47 | Ring Kit | TB-10-47 | 1 |
| 48 | Valve Repair Kit | TB-10-48 | 1 |
| 49 | Filter Element (Not Shown) | TB-10-43E | 1 |
