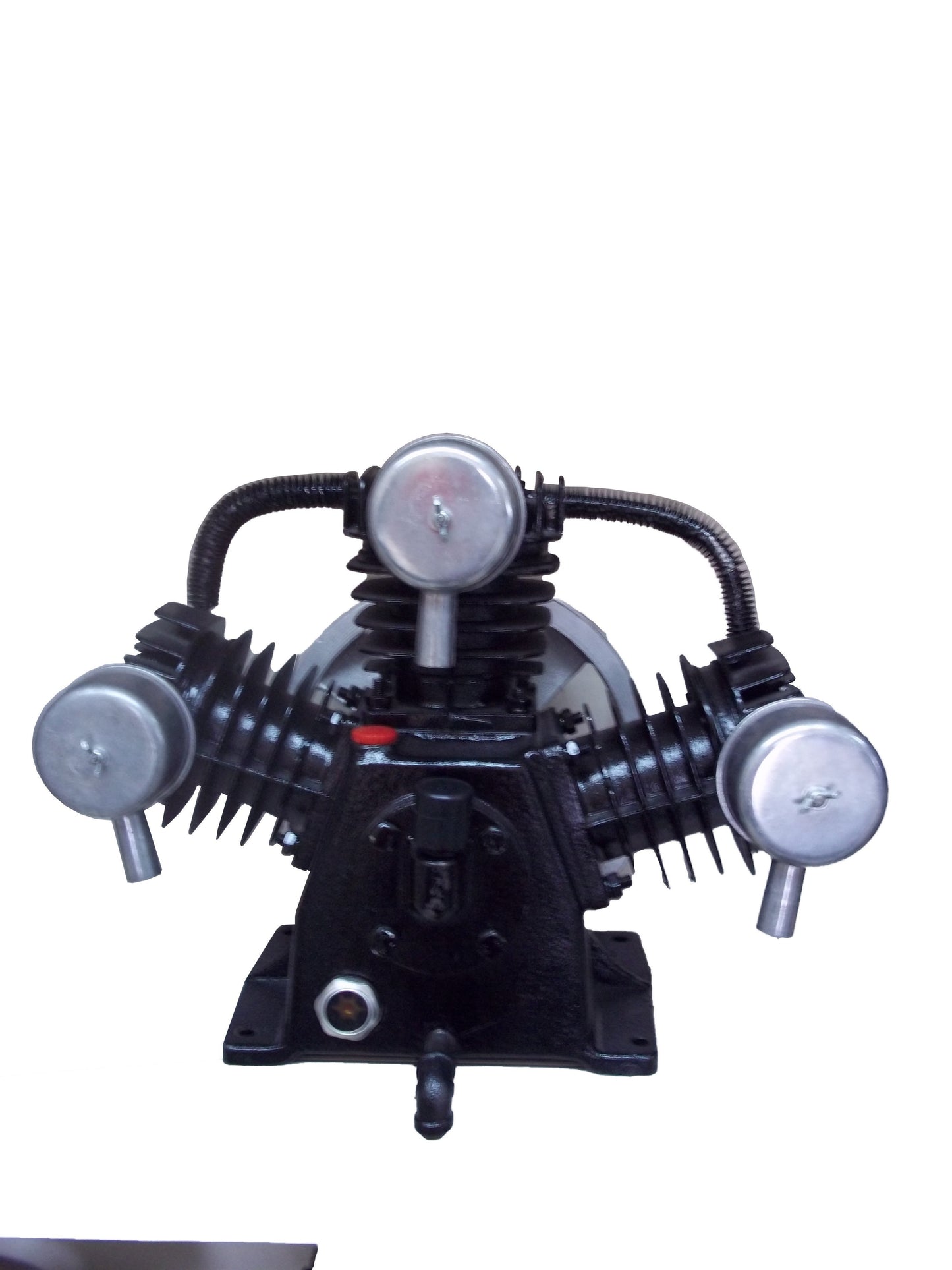

Pump For Air Compressor PT03AHP
Pump For Air Compressor PT03AHP
PT03AHP
Regular price
$738.00 USD
Regular price
$999.00 USD
Sale price
$738.00 USD
Unit price
per
Couldn't load pickup availability
The PT03A-HP Pump 18.5 CFM@100 PSI,5.0 Horsepower, Max Rated @ 170 PSI includes the following items: 1 Pump
This is used on the following air compressors pumps including Iron Horse Air Compressors, Eagle Air Compressors, and MAXair Industrial Air Compressor.
Fits Air Compressor :
9G30TRKE-H-MAP
C5160V1-MAP
C5180V1-MAP
P5125H1-MAP
P90G25H1-MAP
P90GE25H1-MAP
TT518E-MAP
TT90G-MAP
XLE-C6051V1Y-EX
XLE-C8051V1Y-EX
• Shipping Dimensions: 64# 25x17x17
| Item | Description | Part Number | Quantity |
| 1 | Intake Filter Assembly | 51111-5600 | 3 |
| 2 | Cylinder Head | 52122-0101 | 3 |
| 3 | Lift Limiter - Discharge Valve Reed | 51121-3102 | 6 |
| 4 | Valve Plate | 52122-2101 | 3 |
| 5 | Valve Plate to Head Gasket | 52122-2105 | 3 |
| 6 | Discharge Valve Reed | 51121-2103 | 6 |
| 7 | Intake Valve Reed | 52122-2103 | 3 |
| 8 | Valve Plate to Cylinder Gasket | 52122-2104 | 3 |
| 9 | Piston | 51122-5101 | 3 |
| 10 | Piston Pin | 51122-5112 | 3 |
| 11 | Piston Pin Snap Ring | 51122-5107 | |
| 12 | Connecting Rod c/w Dipper | 51122-5120 | 3 |
| 13 | Connecting Rod without Dipper | 52122-5120 | |
| 14 | Cylinder | 52122-4101 | 3 |
| 15 | Oil Filter Cap | 51111-4719 | 1 |
| 16 | Cylinder to Crankcase Gasket | 51122-4103 | 3 |
| 17 | Oil Sight Glass c/w Gasket | 51111-4770 | 1 |
| 18 | Crankcase | 51132-4701 | 1 |
| 19 | Crankshaft | 51132-4601 | 1 |
| 20 | Front Bearing |
83501-6205 |
1 |
| 21 | Rear Bearing |
83501-6205 |
1 |
| 22 | Crankcase to Rear Bearing Housing Gasket | 51122-4704 | 1 |
| 23 | Rear Bearing Housing | 51122-4703 | 1 |
| 24 | Oil Seal | 51122-4708 | 1 |
| 25 | Crankcase Breather | 51111-4761 | 1 |
| 26 | Flywheel | 51132-6601 | 1 |
| 27 | Front Bearing Housing | 51122-4706 | 1 |
| 28 | Crankcase to Front Bearing Housing Gasket | 51122-4707 | 1 |
| 29 | Connecting (Interstage) Tubing | 51132-7710 | 2 |
| 30 | Metal Triangle For Valve Plate Assembly (Not Shown) | 51121-3101 | 2 |
| 1/4" Street Elbow (Oil Drain) | STREL1/4 | 1 | |
| Interstage "Y" Fitting | 51121-7702 | 2 | |
| Interstage "Elbow" Fitting | 51112-7701 | 1 | |
| Eagle Oil (650ML or 22OZ) | EAOIL10 | 1 |
| Item | Description | Part Number | Quantity |
| A | Intake Filter Element Kit Includes: | 51121-5614C | 1 |
| - 3 Intake Filter Elements | |||
| B | Valve Repair Kit Includes: |
101000-165 |
3 |
| Valve Seat to Head Gasket (Item 5) | |||
| 2x Outlet Valve Plates (Item 6) | |||
| Intake Valve Plate (Item 7) | |||
| 6x Valve Plate Screws | |||
| Valve Seat to Cylinder Gasket (Item 8) | |||
| Metal Triangle for Valve Plate Assy (Item 30) | |||
| C | Ring Repair Kit Includes: | 101000-265 | 2 |
| Valve Seat to Head Gasket (Item 5) | |||
| Valve Seat to Cylinder Gasket (Item 8) | |||
| 2x Compression Rings | |||
| 1x Oil Control Ring | |||
| Cylinder to Crankcase Gasket (Item 16) | |||
| D | Valve Plate Assembly (Not Shown) | 51121-2100 | 3 |
| E | Flywheel Fastener Kit | 51132-6602 | 1 |
| E | Head Unloader Kit Includes: | ||
| Unloader | 52122-0120 | 3 | |
| Unloading Elbow | 69926-050101 | 1 | |
| Unloading Tee | 69927-050101 | 1 | |
| Unloading Tube | TU-1/4-CU | 5ft | |
| Cylinder Head | 51121-0101U | 3 |
