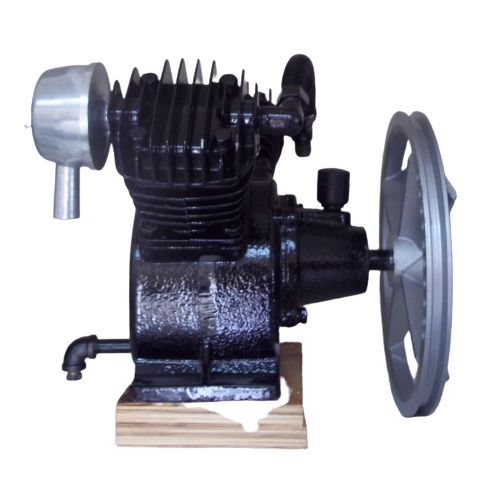

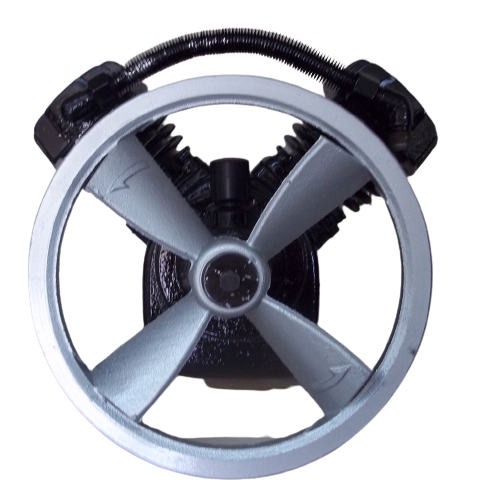

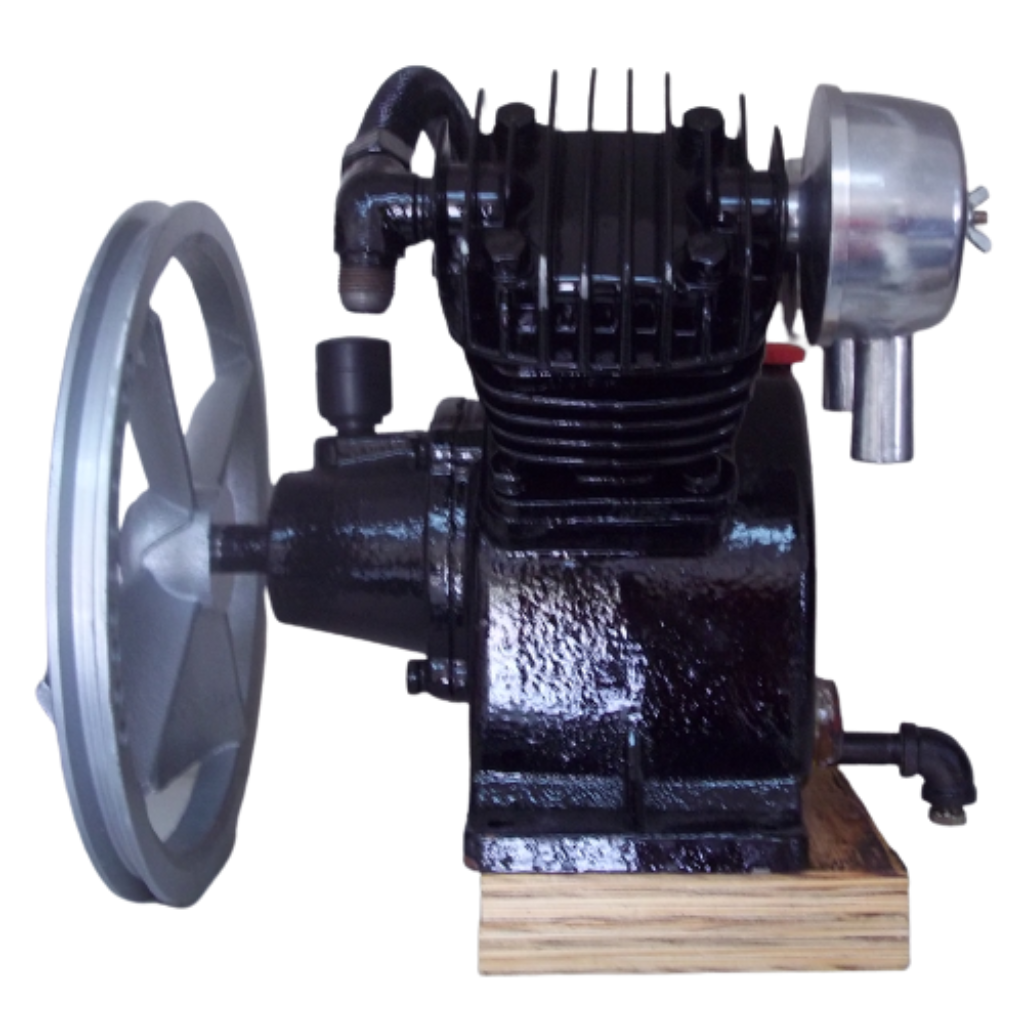

Pump PV01A
Pump PV01A
PV01A
Regular price
$240.00 USD
Regular price
$460.00 USD
Sale price
$240.00 USD
Unit price
per
Couldn't load pickup availability
- Features:
This was used on the following air compressors pumps from Wood Industries including Iron Horse Air Compressors, Eagle Air Compressors, and MAXair Industrial Air Compressor.
Fits Air Compressor :
MAC3001
P3120H1
P3120H1-XF
P3124V1
P3124V1-XF
TT318E-DV
• SHIPPING DIMENSIONS- 36# 16X15X18
| Item | Description | Part Number | Quantity |
| 1 | Intake Filter Accessory | 51111-5600 | 2 |
| 2 | Cylinder Head | 51121-0101 | 2 |
| 3 | Lift Limiter for Discharge Valve Plate | 51121-3102 | 2 |
| 4 | Valve Plate | 51121-2101 | 2 |
| 5 | Valve Plate to Head Gasket | 51121-2105 | 2 |
| 6 | Discharge Valve Reed | 51121-2103 | 4 |
| 7 | Valve Plate Screws | 50000-2000 | 8 |
| 8 | Valve Plate to Cylinder Gasket | 51121-2104 | 2 |
| 9 | Piston | 52121-5101 | 2 |
| 10 | Piston Pin | 51121-5112 | 2 |
| 11 | Piston Pin Snap Ring | 51121-5107 | 4 |
| 12 | Connecting Rod c/w Dipper | 51121-5120 | 2 |
| 13 | |||
| 14 | Cylinder | 52121-4101 | 2 |
| 15 | Oil Filter Cap | 51111-4719 | 1 |
| 16 | Cylinder to Crankcase Gasket | 51121-4103 | 2 |
| 17 | Oil Sight Glass c/w Gasket | 51111-4770 | 1 |
| 18 | Crankcase | 51121-4701 | 1 |
| 19 | Crankshaft | 51121-4601 | 1 |
| 20 | Front Bearing | 83501-6205 | 1 |
| 21 | Rear Bearing | 83501-6204 | 1 |
| 22 | Crankcase to Rear Bearing Housing Gasket | 51121-4704 | 1 |
| 23 | Rear Bearing Housing | 51121-4703 | 1 |
| 24 | Oil Seal | 51121-4708 | 1 |
| 25 | Crankcase Breather | 51111-4761 | 1 |
| 26 | Flywheel c/w Fasteners | 51121-6601 | 1 |
| 27 | Rear Bearing Snap Ring | 83610-113025 | 1 |
| 28 | Front Bearing Keeper | 1 | |
| 29 | Connecting (Interstage) Tubing | 51121-7710 | 1 |
| Interstage "Y" Fitting | 51121-7702 | 1 | |
| Interstage "Elbow" Fitting | 51112-7701 | 1 | |
| Eagle Oil (350ML or 12oz) | EAOIL10 | 1 | |
| 1/4" Street Elbow (Oil Drain) | STREL1/4 | 1 |
| Item | Description | Part Number | Quantity |
| A | Intake Filter Element Kit Includes: | 51121-5614C | 1 |
| - 2 Intake Filter Elements Per Pump | |||
| B | Valve Repair Kit Includes: | 101000-151 | 2 |
| Valve Plate to Head Gasket (Item 5) | |||
| 2x Discharge Valve Reeds (Item 6) | |||
| Valve Plate Screws (Item 7) | |||
| Valve Plate to Cylinder Gasket (Item 8) | |||
| C | Ring Repair Kit Includes: | 101000-255 | 2 |
| Valve Plate to Head Gasket (Item 5) | |||
| Valve Plate to Cylinder Gasket (Item 8) | |||
| 2x Compression Rings | |||
| 1x Oil Control Ring | |||
| Cylinder to Crankcase Gasket (Item 16) | |||
| D | Valve Plate Assembly (Not Shown) | 51121-2100 | 2 |
| E | Head Unloader Kit Includes: | ||
| Unloader | 52122-0120 | 2 | |
| Unloading Elbow | 69926-050101 | 1 | |
| Unloading Tee | 69927-050101 | 1 | |
| Unloading Tube | TU-1/4-CU | 3ft | |
| Cylinder Head | 51121-0101U | 2 | |
| F | Oil Drain Kit (Not Shown) |
