Iron Horse 5 Horse Power 20 Gallon Air Compressor

Iron Horse 5 Horse Power 20 Gallon Air Compressor

IHP5120V1-US

$895.00 USD
$995.00 USD $895.00 USD
Sale Sold out
Iron Horse Logo


A lift gate fee and a residential fee will still be charged. In addition to shipping charges

This Item Has To Ship Truckline

Features

  • CFM / PSI: 5.6 CFM @ 90 PSI
  • HorsePower: 5.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 20
  • Electric Motor: 115v
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM:
  • Amp Draw: 12.5
  • Pressure Switch:
  • Cast Iron Cylinders
  • Factory Set Pressure Switch
  • Auto Drop Metal Air Filters
  • Easy View Oil Sight Gauge
  • Powder Coated Tanks
  • High Efficiency Reed Valves
  • Regulator & Coupler Included
  • Oil Lubricated
  • 1 Year Limited Warranty
  • TMI72500

DIM:  35" x 15" x 28"

WEIGHT:  128 LBS

Item Description Product Code
1 Compressor w/ Flywheel CC2051
2 Discharge Tube  TU-20-AL
3 Check Valve CTF1/2X1/2
4 Electric Motor EM03.0-36-10SP-CH
5 Pulley - Motor MA33X5/8
6 V-Belt 4L450
7 Belt Guard BG20GAL
8 Air Receiver (tank) 20VEPORT-T
9 Pressure Gauge PG200-2.0BO1/4
  Pressure Guage (Regualtor) PT0160
10 Regulator R46-200-RNLA
11 Drain Cock -Assembly 240-B
12 Safety Valve PSV1/4-150
13 Pressure Switch 21UCBDB-CH
14 Wiring Harness 12/3-13-PT
15 Handle  PT-HANDLE-24HL
16 Wheel PT-WHEEL-FF
17 Vibration Dampner TT-FOOT
18 Power Cord 12/3-72-PT
19 Unloader Tube TU1/4BLK
  *Fittings for TU1/4BLK 68-4A
  Coupler 10TT-8
Eagle Compressor Oil EAOIL10

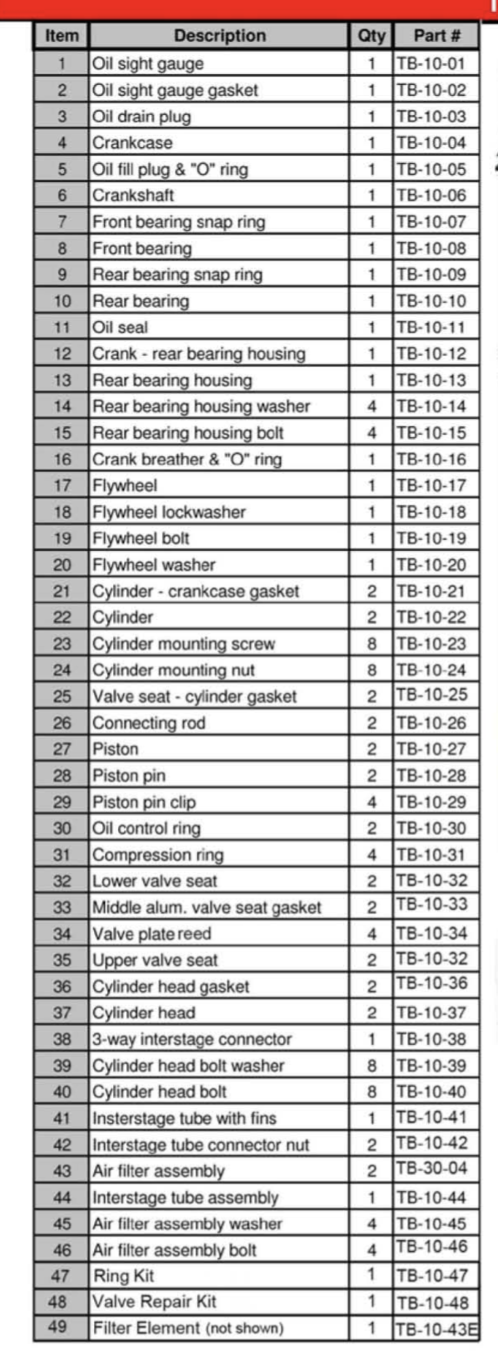

 Item Description Product Code Quantity

1

 Oil Sight Gauge TB-10-01

1
2 Oil Sight Gauge Gasket TB-10-02 1
3 Oil Drain Plug TB-10-03 1
4 Crankcase TB-10-04 1
5 Oil Fill Plug & "O" Ring TB-10-05 1
6 Crankshaft TB-10-06 1
7 Front Bearing Snap Ring TB-10-07 1
8 Front Bearing TB-10-08 1
9 Rear Bearing Snap Ring TB-10-09 1
10 Rear Bearing TB-10-10 1
11 Oil Seal TB-10-11 1
12 Crank - Rear Bearing Housing TB-10-12 1
13 Rear Bearing Housing TB-10-13 1
14 Rear Bearing Housing Washer TB-10-14 4
15 Rear Bearing Housing Bolt TB-10-15 4
16 Crank Breather & "O" Ring TB-10-16 1
17 Flywheel TB-10-17 1
18 Flywheel Lockwasher TB-10-18 1
19 Flywheel Bolt TB-10-19 1
20 Flywheel Washer TB-10-20 1
21 Cylinder - Crankcase Gasket TB-10-21 2
22 Cylinder TB-10-22 2
23 Cylinder Mounting Screw TB-10-23 8
24 Cylinder Mounting Nut TB-10-24 8
25 Valve Seat - Cylinder Gasket TB-10-25 2
26 Connecting Rod TB-10-26 2
27 Piston TB-10-27 2
28 Piston Pin TB-10-28 2
29 Piston Pin Clip TB-10-29 4
30 Oil Control Ring TB-10-30 2
31 Compression Ring TB-10-31 4
32 Lower Valve Seat TB-10-32 2
33 Middle Alum. Valve Seat Gasket TB-10-33 2
34 Valve Plate Reed TB-10-34 4
35 Upper Valve Seat TB-10-32 2
36 Cylinder Head Gasket TB-10-36 2
37 Cylinder Head TB-10-37 2
38 3-Way Interstage Connector TB-10-38 1
39 Cylinder Head Bolt Washer TB-10-39 8
40 Cylinder Head Bolt TB-10-40 8
41 Interstage Tube with Fins TB-10-41 1
42 Interstage Tube Connector Nut TB-10-42 2
43 Air Filter Assembly TB-30-04 2
44 Interstage Tube Assembly TB-10-44 1
45 Air Filter Assembly Washer TB-10-45 4
46 Air Filter Assembly Bolt TB-10-46 4
47 Ring Kit TB-10-47 1
48 Valve Repair Kit TB-10-48 1
49 Filter Element (Not Shown) TB-10-43E 1
