Iron Horse 80 Gallon Two Stage Air Compressor

Iron Horse 80 Gallon Two Stage Air Compressor


Regular price $2,595.00 USD
Regular price $3,047.60 USD Sale price $2,595.00 USD
Sale Sold out



      "V" design minimizes vibration, improves cooling, extends life
    • High efficiency reed valves provide maximum performance
    • Individual & Removable Cylinders
    • Smoother & cooler operation for optimum durability
    • 7.5 HP (Peak) 208-230 Volt, Single Phase Electric Motor
    • Protected against overheating; requires 23 amp circuit
    • Magnetic Motor Starter Included
    • Improves performance with less expense
    • Heavy-Duty Pressure Switch With On/Off Control
    • 50% duty cycle delivers 22 CFM at 90 PSI; 200 PSI maximum
    • Easy-View Oil Sight Gauge
    • Lets you check oil level at a glance for easy maintenance
    • Efficient Heat Removal From Fly Wheel
    • Cooler running & longer compressor life
    • Sturdy Metal Belt Guard
    • Protects both the belt & the operator
    • 80 Gallon ASME Registered Tank
    • Rated to 200 PSI; sturdy 3/4" ball valve air outlet included
    • CSA certified for increased assurance of quality and safety
    • Voltage 208-230 Volt AC
      Magnetic Starter Yes
      Amp Draw Consult Certified Electrician
      Recommended Breaker Consult Certified Electrician
      CFM 22
      CFM Rated @ 90 PSI
      Pump Material Solid Cast Iron
      Max PSI 200 PSI
      Oil Sight Glass Yes
      Pump Type Two-Stage
      After Cooler Yes
      Pump Drive Belt Drive
      Oil Type Oil Lubricated
      Oil System Splash Lubricated
      Pump Low Oil  Shut-off No
      Tank Size 80 Gallons
      Tank Outlet 3/4 Inch
      Electronic Drain Valve No
      Tank Orientation Vertical
      Weight 485 Pounds
      Certification ASME
      Consumer Warranty 1 Year
      Product Length 36 Inches
      Product Width 23.5 Inches
      Product Height 68 Inches
      Power Type Electric


Item Description Product Code
1 Compressor w/ Flywheel CC3090TS-AC
2 Discharge Tube (2.5ft) ASSY TU-3/4-CU
3 Pressure Gauge PF200-2.5R
4 Outlet Valve BV3/4MF
5 Air Receiver (tank) 80VE24X48-G
6 Drain Cock -Assembly 240-B
7 V-Belt A70
8 Motor - 1 Phase, 208/230V EM07.5-18-10
11 Check Valve P7575ST
12 Pressure Switch 21UCBDB-CH175
13 Pulley - Motor 2MAL62
14 Unloader Tube  TU-1/4-CU
15 Safety Valve PSV1/4-200
  Belt Guard BG80GAL
  Wiring Harness 12/3-24-C4
  **Fittings Required for TU-1/4CU 68-4A
  Mag Starter 1062MS
Eagle Compressor Oil EAOIL10

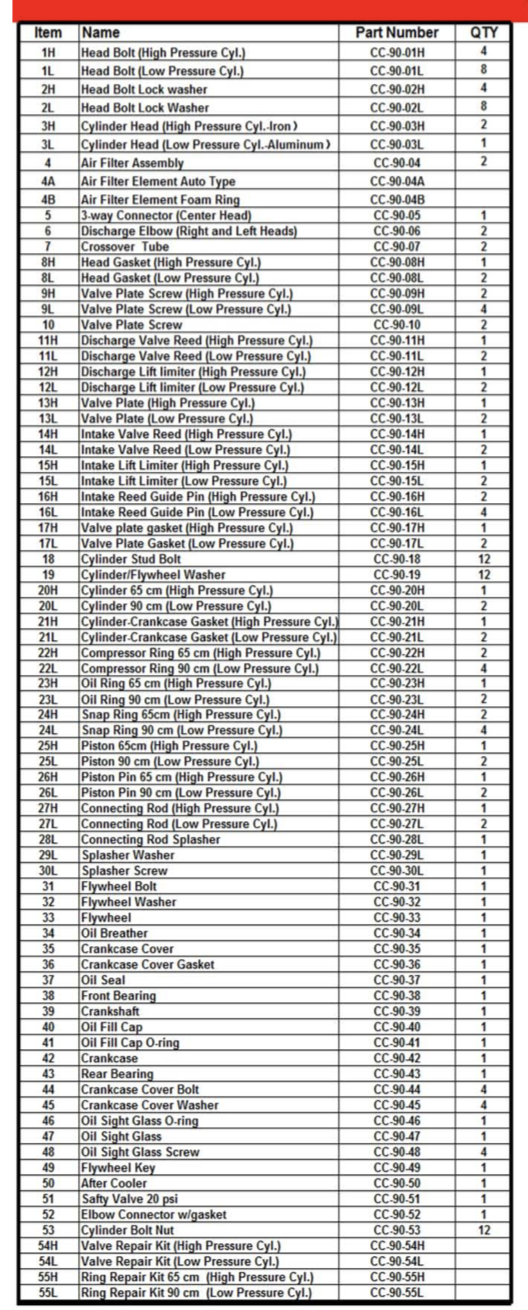

Item Name Part Number Quantity
1H Head Bolt (High Pressure Cyl.) CC-90-01H 4
1L Head Bolt (Low Pressure Cyl.) CC-90-01L 8
2H Head Bolt Lock Washer CC-90-02H 4
2L Head Bolt Lock Washer CC-90-02L 8
3H Cylinder Head (High Pressure Cyl. - Iron) CC-90-03H 2
3L Cylinder Head (Low Pressure Cyl. - Aluminum) CC-90-03L 1
4 Air Filter Assembly CC-90-04 2
4A Air Filter Element Auto Type CC-90-04A
4B Air Filter Element Foam Ring CC-90-04B
5 3-Way Connector (Center Head) CC-90-05 1
6 Discharge Elbow (Right and Left Heads) CC-90-06 2
7 Crossover Tube CC-90-07 2
8H Head Gasket (High Pressure Cyl.) CC-90-08H 1
8L Head Gasket (Low Pressure Cyl.) CC-90-08L 2
9H Valve Plate Screw (High Pressure Cyl.) CC-90-09H 2
9L Valve Plate Screw (Low Pressure Cyl.) CC-90-09L 4
10 Valve Plate Screw CC-90-10 2
11H Discharge Valve Reed (High Pressure Cyl.) CC-90-11H 1
11L Discharge Valve Reed (Low Pressure Cyl.) CC-90-11L 2
12H Discharge Lift Limiter (High Pressure Cyl.) CC-90-12H 1
12L Discharge Lift Limiter (Low Pressure Cyl.) CC-90-12L 2
13H Valve Plate (High Pressure Cyl.) CC-90-13H 1
13L Valve Plate (Low Pressure Cyl.) CC-90-13L 2
14H Intake Valve Reed (High Pressure Cyl.) CC-90-14H 1
14L Intake Valve Reed (Low Pressure Cyl.) CC-90-14L 2
15H Intake Lift Limiter (High Pressure Cyl.) CC-90-15H 1
15L Intake Lift Limiter (Low Pressure Cyl) CC-90-15L 2
16H Intake Reed Guide Pin (High Pressure Cyl.) CC-90-16H 2
16L Intake Reed Guide Pin (Low Pressure Cyl.) CC-90-16L 4
17H Valve Plate Gasket (High Pressure Cyl.) CC-90-17H 1
17L Valve Plate Gasket (Low Pressure Cyl.) CC-90-17L 2
18 Cylinder Stud Bolt CC-90-18 12
19 Cylinder/Flywheel Washer CC-90-19 12
20H Cylinder 65 CM (High Pressure Cyl.) CC-90-20H 1
20L Cylinder 90 CM (Low Pressure Cyl.) CC-90-20L 2
21H Cylinder-Crankcase Gasket (High Pressure Cyl.) CC-90-21H 1
21L Cylinder-Crankcase Gasket (Low Pressure Cyl.) CC-90-21L 2
22H Compressor Ring 65 CM (High Pressure Cyl.) CC-90-22H 2
22L Compressor Ring 90 CM (Low Pressure Cyl.) CC-90-22L 4
23H Oil Ring 65 CM (High Pressure Cyl.) CC-90-23H 1
23L Oil Ring 90 CM (Low Pressure Cyl.) CC-90-23L 2
24H Snap Ring 65 CM (High Pressure Cyl.) CC-90-24H 2
24L Snap Ring 90 CM (Low Pressure Cyl.) CC-90-24L 4
25H Piston 65 CM (High Pressure Cyl.) CC-90-25H 1
25L Piston 90 CM (Low Pressure Cyl.) CC-90-25L 2
26H Piston Pin 65 CM (High Pressure Cyl.)  CC-90-26H 1
26L Piston Pin 90 CM (Low Pressure Cyl.) CC-90-26L 2
27H Connecting Rod (High Pressure Cyl.) CC-90-27H 1
27L Connecting Rod (Low Pressure Cyl.) CC-90-27L 2
28L Connecting Rod Splasher CC-90-28L 1
29L Splasher Washer CC-90-29L 1
30L Splasher Screw CC-90-30L 1
31 Flywheel Bolt CC-90-31 1
32 Flywheel Washer CC-90-32 1
33 Flywheel CC-90-33 1
34 Oil Breather CC-90-34 1
35 Crankcase Cover CC-90-35 1
36 Crankcase Cover Gasket CC-90-36 1
37 Oil Seal CC-90-37 1
38 Front Bearing CC-90-38 1
39 Crankshaft CC-90-39 1
40 Oil Fill Cap CC-90-40 1
41 Oil Fill Cap O-Ring CC-90-41 1
42 Crankcase CC-90-42 1
43 Rear Bearing CC-90-43 1
44 Crankcase Cover Bolt CC-90-44 4
45 Crankcase Cover Washer CC-90-45 4
46 Oil Sight Glass O-Ring CC-90-46 1
47 Oil Sight Glass CC-90-47 1
48 Oil Sight Glass Screw CC-90-48 4
49 Flywheel Key CC-90-49 1
50 After Cooler CC-90-50 1
51 Safety Valve 20 PSI CC-90-51 1
52 Elbow Connector w/ Gasket CC-90-52 1
53 Cylinder Bolt Nut CC-90-53 12
54H Valve Repair Kit (High Pressure Cyl.) CC-90-54H
54L Valve Repair Kit (Low Pressure Cyl.) CC-90-54L
55H Ring Repair Kit 65 CM (High Pressure Cyl.) CC-90-55H
55L Ring Repair Kit 90 CM (Low Pressure Cyl.) CC-90-55L
